Very
Large 55mm “X” axis ball-screw and Fanuc Alpha digital servo’s
Front-End PC Versatility, CNC Reliability
|
|
|
|
We've married the
power and familiarity of a Windows®-based PC with the flawless
reliability of a Fanuc Panel i machine
control system. Our exclusive fiber-optic connected front-end PC
operation and programming system offers you faster, more flexible production
control at the machine.
Your operator can store and retrieve
hundreds of programs right on the shop floor. Harness the native power
of PC connectivity possibilities with your customers and your internal
computer systems.
No other CNC router offers the
user-friendliness and the power of a Solution. Most importantly, the
front-end PC allows you to integrate emerging machine programming
software advances, such as nested-based manufacturing and the latest in
cabinet design to machine production code software, into your
production.
|
|
|
The Solution includes:
|
Machining Head
|
One HSK 63F electro
spindle, 15 HP (11 kw) or 18 HP (13.5 Kw) spindle with
programmable spindle speeds up to 24,000 RPM. The spindle is equipped
with a dual-activated pneumatic drawbar to hold the tool, and includes
an anti-rotation assembly for aggregate tooling.
One 8 tool automatic aggregate-capable
tool changer is standard with a 12 position optional, servo-controlled
and bi-directional. The tool changer eliminates the need for the
operator to stop the machine to change tools manually, allowing the
program to continue uninterrupted.
Automated tool length
measurement with spoil board updating. (Optional)
|
Table / Work
Surface
|
The work surface is
a precision machined Lignastone high-flow
vacuum table. The surface is machined in a grid pattern to present a
modular work area for ease of set-up and quick changeover. This system
is extremely flexible for Nesting, conventional fixtures or Pod based
fixturing. Complete with Pop up
locator pins.
Table sizes available:

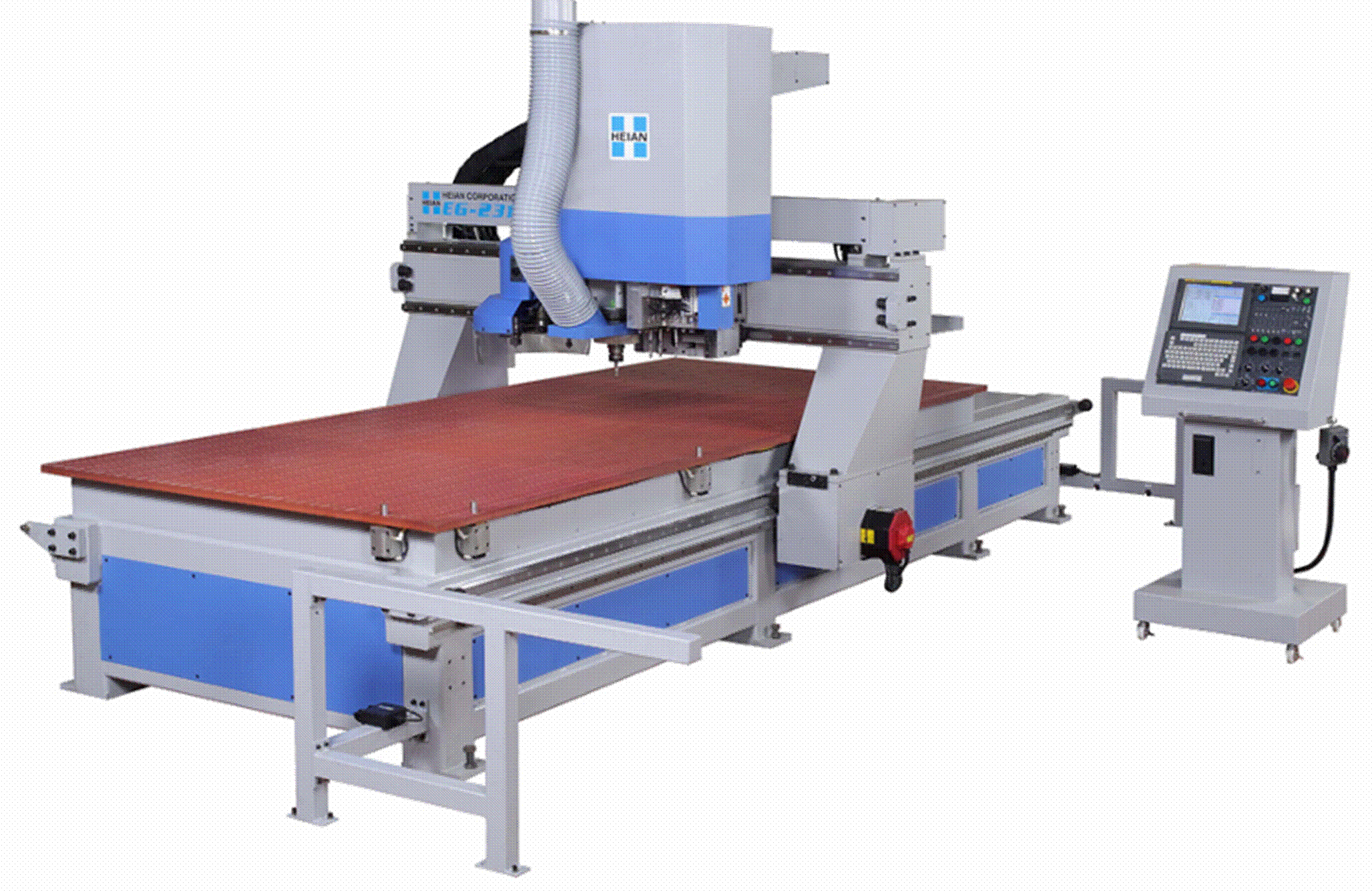

EG 1637 Solution
61” x 144” (1550mm x 3700mm) table
EG 1674 Solution
61" x 288" (1550mm x 7400mm) table
|
Dust / Chip
Removal
|
The spindle is equipped with a three position programmable
dust shroud and a 6" (152mm) steel adapter for easy hookup to your
dust collection system.
|
Positioning
|
Y and Z axis motion
is accomplished by large pre-loaded precision ball screws and powered
by a Fanuc Alpha high-speed servo system for optimum acceleration and
deceleration.
X axis is controlled by dual precision
helical rack and pinion system.
All positioning bearings are serviced
by a pressurized automatic central oil lubrication system.
Unidirectional linear axis positioning repeatability (per
meter) +/-0.0008" (+/-0.020mm)
Unidirectional linear axis repeatability
(overall) +/-0.0004"
(+/-0.010mm)
|
Axis Traverse /
Feed rates
|
X
axis rapid traverse feed rate up to (50,000mm/min) with standard HSHP
Y axis
rapid traverse feed rate up to (80,000mm/min) with standard HSHP
Z axis
rapid traverse feed rate up to (20,000mm/min)
|
|
Heian Fanuc Panel i Control (Integrated
PC) Features:
|
|
Pentium PC
Windows® 2000 operating system
200 Part program storage
Controller keyboard
10.4" color LCD
Linear/Circular interpolation
Run hour/Parts count display
Simultaneous 4 axis control
128MB RAM (minimum)
Network compatible
3.5" floppy drive
40 GB hard drive
Remote electronic handwheel (MPG)
Absolute/Incremental programming
Alarm/Operator message display
Actual feed rate display
HSHP - High Speed, High Precision
Background editing
USB port
|
DNC Scheduler with Intelligent Spoil board Management©
Program restart
Dry run
MDI operation
Feed rate override
Traverse override
Spindle override
Optional block skip
Tool offset memory
Current position display
Tool length compensation
Cutter compensation type C
Inch/Metric capability
Workpiece coordinate system preset
Programmable mirror image
Dwell (G4)
Tool length measurement
AI advanced preview control
|
|
* Options can be changes without notice.
|
|
|
|
|
|
|
